RTXL-1500M Support DJI Matrice 200 210 , inspire 2
RTXL-2500M Support DJI Matrice 300 series
Directly connect 110V- 220V indoor power or outdoor power generator
This is a tether transformer. After the tether is started, the AC 220V voltage will be converted to 400v high voltage, boosted to 400v, then to air module, and then convert to 48v to DJI aircraft.
RTXL drone power supply system is designed for long-endurance space keeping system of DJI Matrice 200 210 300 inspire2 series drone. This system is consist of an onboard power supply and an integrated power supply. The power supply of ground battery is continuously transmitted to drone through the alloy power cable which makes it exceed the battery capacity limit. It makes users to have more time to enjoy playing fun with drone.
The tethered system perfectly solves 3 limitations of multi-rotor industrial drones.
►Flight time: after being connected to the tethered platform, the multi-rotor drone can complete fixed-point high- altitude hovering mission that requre long-term continuous operation in specific scenarios without being limited by baterry capacity.
►Safety: in special areas such as no-fly zones, crowds, flammable and explosive areas, tethered drones can maximize the performance of tarks while minimizing the danger.
►Easy to use: only need to master simple flying skills to easily operate the tethered drone.
Features
►No need to modify the aircraft, just install the air-part module and use it.
►Rain-proof cover design, no fear of bad weather.
►With auto winch system.

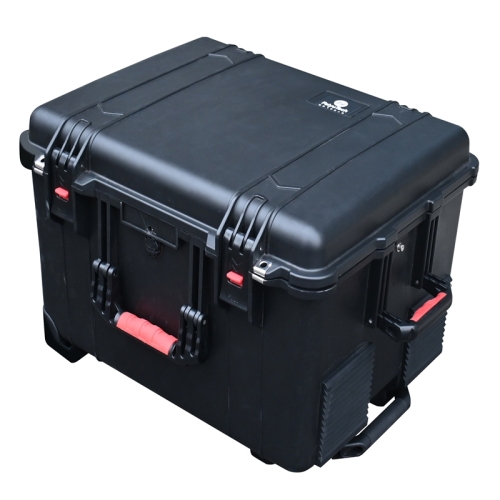

►Trolley case design, easy to move.
Ground module
Cable length: fly heigh 50m;
Input voltage: AC110-240V;
Output Voltage: DC300-400V;
Maximum output current: 3.5A;
Maximum input current：6.18A (input voltage AC 220V rated load);
Input maximum impulse current：9A (input voltage AC 220V rated load);
Rated Power: 2500W;
Work temperature: -20ºC~+60ºC;
Cable winch: Automatic + Manual;
Material: Solid aviation box;
Dimension: 585mm*390mm*285mm; Weight: 23kg;
Air module
Rated input voltage: DC 300 - 420 V;
Rated output voltage: DC 24±1.2 V;
Rated maximum output current: >60A;
Rated power: 1500W;
Overcurrent protection: ≥70A;
Overvoltage protection: 420v;
Output short circuit protection;
Overtemperature protection function: 80 ℃;
Shell material: aviation aluminum alloy；
Dimension: 110*90*50mm; Weight: 428g；
RTXL-2500M Tether system for DJI Matrice 300 RTK
Ground module
Cable length: 51meters, can fly height 50m; 100 meters is optional.
Input voltage: AC110-240V;
Output Voltage: DC300-400V;
Maximum output current：6.5A;
Maximum input current：8.75A (input voltage AC 220V rated load);
Input maximum impulse current：9A (input voltage AC 220V rated load);
Rated Power: 3000W;
Work temperature: -20ºC~+55ºC;
Cable winch: Automatic + Manual;
Material: Solid aviation box;
Dimension: 585mm*390mm*285mm; Weight: 23kg;
Air module
Rated input voltage: DC 300 - 420 V;
Rated output voltage: DC 45-50V;
Rated maximum output current: >50A;
Rated power: 2.5 kw;
Overcurrent protection: ≥62A;
Overvoltage protection: 420v;
Output short circuit protection;
Overtemperature protection function: 80 ℃;
Shell material: aviation aluminum alloy;
Product size: 145mm*91mm*93mm; Weight: 500 ± 10g;
