RTH850RTK Tethered Drone for Public Security and Lighting

Description Tethered system Lighting Review

Description

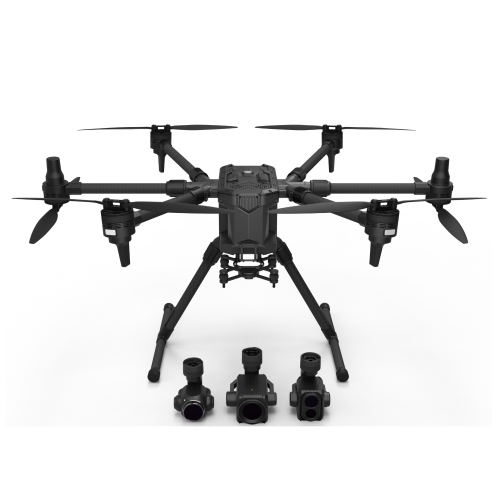

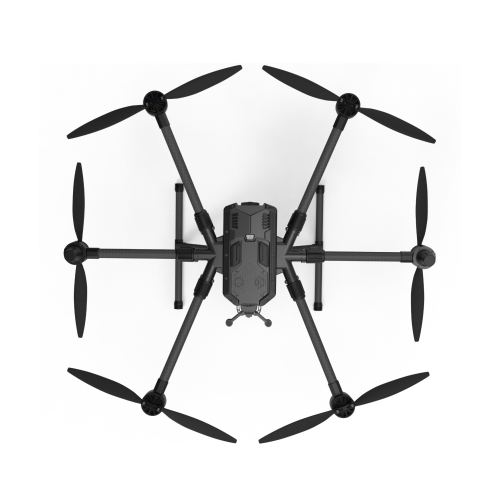

RTH850RTK Tethered Drone for Public Security and Lighting

The new RTH850-RTK is designed specifically with inspections, surveying, public safety applications and fawn rescue in mind.

Our hexacopter design offers more safety, power, efficiency, stability and capacity to carry heavier payloads.

Depending on the payload and weather conditions, flight times up to 63 minutes are possible.

In addition to the performance and payload flexibility, great emphasis was placed on the RTH850 flight and data security when developing it. Flight data belongs to you and to nobody else.

The RTH850 is equipped with a dual IMU, compass, barometer, dual RTK antennas and two smart batteries. Even with only five motors running, you are able to land the RTH850 safely.

Drone's specifications:

Weight: 5800 gram, inclusive 2 flight battery

MTOW: 8800g

Max Payload Weight: 3000g

Diagonal Size: 850mm

Unfolded: 440×365×470 mm

Max Ascend Speed: 3 m/s

Max Descent Speed: 2-5 m/s

Max Horizontal Speed: 20 m/s

Max Flight Speed: 72 km/h

Max. Flight Ceiling (MSL): 5000m

Max Flight Time: 63 minutes (without payload)

Battery 23.1volt: 2* Li-ion HV, 6S,12800mAh

Position System: GPS, Glonass, Beidou&Galileo

Hovering Accuracy(Single): Horizon:±0.5m Vertical:±0.5m

RTK(RMS) Accuracy: 1cm +1ppm(H); 1.5cm+1pp

Operating Temperature: -20°C-50°C (-4° F -122° F)

Payload Connector: X-connector

Compatible Payloads: E20TVx, E90X, E30Zx, ETx

Upward Gimbal: Optional

Hot-swappable Batteries & Payloads: Yes

IP: x5

Collision Avoidance System: Millimeter-wave Radar(optional)

GMAC 1000Mb, USB-C

Connectivity Ports and Power Supply RTH850: 5v+GND, 2x PWM,2x GPIO, 5 power requirements.

Autopilot: PX4 Based

Remote Controller:

• 7-inch touch screen

• 1920x1200 screen resolution

• 1000 nit luminance

• Operating Frequency: 2.400 - 2.4835 GHz and 5.725 - 5.850 GHz( 800MHz/1.4GHz optional)

• 10 km range Fcc (15 km range Fcc is optional )

• 8 km range Ce

• 8 hours of operation time

• 10.000 mAh/7.4-volt battery

• 40 Mbps dual-band

• Dynamic Frequency hopping

• IP x4

• Cortex A72&A53 high-performance processor • Android 10

• 32Gb ROM / 4 Gb RAM

• HDMI

• USB-C, USB-3 & USB-2 • Micro SD

• 1.2 kg only

• No data sharing

Batteries:

• Size: 98×58×149mm

• Battery Capacity: 12.800mAh

• Battery Wattage: 295.68Wh Standard

• Voltage: 23.1v (3.85v/cell)

• Charging Voltage: 26.4v

• Battery Type: Li-ion

• Fast Charge: 1C (10 Amp) Charging Time: 1,5 hours

• Max Continuous Discharge Current: 64A Maximum Discharge

• Current: 128A Weight: 1390 gram

• Operating Temperature: 0°C+45°C

Charger Case:

With the RTH850 Power Charging Case, you are able to charge four RTH850 batteries and two batteries simultaneously!

Thanks to the hard-case design, you can store and transport the batteries safely. The compact design makes it able to carry the power Charging Case easily.

SPECIFICATIONS:

•3.5" Color LCD Display •1140 watt (200v-250v) •220/110 volt •Transport case

•Easy to operate •Buzzer alarm •Compact (370×270×220mm)

•Foam cover battery protection

In the packing box

RTH850-RTK Airframe *1

Ground Station Controller *1

Ground Station Battery *1

Intelligent Charging Station *1

Transport Case *1

Intelligent Flight Batteries *2

Landing Gear Assemblies *2

Clockwise A Propellers *3

Counter-Clockwise B Propellers *3

Quick Start Guide *1

Reference Card *1

Tethered system

Tethered system

Ground module

S稍等
Specification of Ground module
1) Input voltage: 176~300Vac @ full load output, 85~176V @half load output, 50/60Hz;
2) Output voltage: 400~750Vdc adjustable, factory default 750Vdc;
3) Output power: 3000W;
4) Protection function
A. Input over-voltage and under-voltage protection: turn-off protection, fault elimination and self-recovery;
B. Output overcurrent protection: constant current step-down protection, fault elimination and self-recovery;
C. Output short circuit protection: output current limiting operation, fault elimination and self-recovery;
D. Output over-temperature protection: the shell temperature is 95 ± 2.5 ºC, and the cooling is self-recovery;
E. Output overvoltage protection: automatically shut down and lock, restart and power on for recovery;
5) Data display: 4.3 inch touch screen displays current, voltage, temperature, line length, operation record, fault record and other data;
6) Alarm function: in case of system fault, the display screen will scroll to display fault information, and the fault warning light will flash red and beep;
7) Communication function: Modbus tcp communication (standard product has no open interface), supporting wired communication and mobile phone synchronous display;
8) Retraction speed: 0~2m/s, 10 gears adjustable;
9) Retrieving and releasing tension: the retracting and releasing tension is divided into 10 gears, which can be adjusted;
10) Working mode: passive reel out, active reel in, automatic wire arrangement, and button forced take-up;
11) Carrying transportation: support the carrying mode of carrying and carrying by hand, with optional pull rod and roller components;
12) Interface: input pin socket with switch;
13) Buttons and switches: high-voltage self-locking button, forced recovery self-reset button, alarm indicator;
14) Size: 360*280*165 ± 0.5mm (excluding knapsack components and external connectors);
15) Weight: 8.8 ± 0.3kg (including tethered cable, excluding external accessories).

Air module specification

1) Input voltage: 580~810Vdc wide range input;

2) Output voltage: 26.0±0.2Vdc, constant voltage output;

3) Output power: 3000W (rated long-term output), 3500W (peak value ≤ 30s);

4) Protection function

A. Input over-voltage and under-voltage protection: turn-off protection, fault elimination and self-recovery;

B. Output overcurrent protection: constant current step-down protection, fault elimination and self-recovery;

C. Output short circuit protection: output current limiting operation, fault elimination and self-recovery;

D. Output over-temperature protection: the shell temperature is 95 ± 2.5 ℃, and the cooling is self-recovery;

E. Output overvoltage protection: automatically shut down and lock, restart and power on for recovery;

5) Installation method: plug-in installation, the same as the original battery installation method, UAV and aviation box do not need any change;

6) Heat dissipation mode: external fan actively dissipates heat, and reserved air duct forced air cooling;

7) Interface: input XT60, output battery interface (UAV power supply), output XT60 (lighting power supply);

8) Size: 148*99*51±0.5mm (the same size as the original battery);

9) Weight: 0.92±0.1kg (replace a 1.4 kg original battery safely without occupying space and weight).

Open the flap at the outlet of the mooring box, take out the mooring cable and pull it to the UAV, insert the output end XT60 of the mooring cable into the airborne power supply, wrap the mooring magic belt around the upper part of the leg stand riser and the connection of the aircraft body, and tighten it at the limit. Pay attention not to twist the mooring cable.

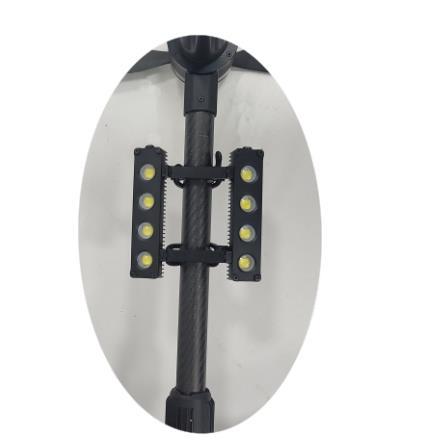

Lighting

Lighting:

Typical characteristics

Small size, light weight, suitable for small and medium-sized multi-rotor UAV;

Large area, high illumination, suitable for various lighting operation scenarios;

It has the functions of short circuit protection, overtemperature protection and tied power failure protection;

With stepless dimming and flash function, simple operation and strong adaptability;

Performance characteristics

Input voltage: 10~60V wide voltage range input;

Lighting power: rated power 640W, short-term peak power up to 720W;

Luminous flux: 80000lm (total amount of light emitted by light source, independent of height and lens angle) Illuminance (brightness): that is, the light intensity, the total amount of light received per unit area, and the illuminance in the effective illumination area tends to average

1) 180lux/20m height

2) 100lux/30m high

3) 60lux/50m high

4) 13lux/100m high

Effective lighting area: effective lighting operation area (about 65% of the maximum lighting area), which can be customized according to requirements, with a maximum height of 10000 m2/30m

1) 760 m2/20m high; 2) 1700 m2/30m high

3) 4800 m2/50m high; 4) 10000 m2/75m high
