| Double light gimbal (standard configuration): | 10X optical zoom HD visible light + 640 infrared | With temperature measurement |
| Transmission distance: | 30KM | Wide area |
| Image data transmission link frequency band: | 2.4G+840M | Dual link design |
| Number of fire extinguishing tanks mounted: | 2 pcs | Aluminum dry powder fire extinguishing tank |
| Dry powder loading net weight: | 24kg | Each fire extinguishing tank contains 12kg dry powder |
| Covered area: | 300m2 | Depends on the specific situation |
| Dry powder injection tube adjustment: | 0~90 degree adjustable | Horizontal or vertical jet |
| Airborne terminal control box: | Equipped | Attach the main control unit |
| Remote control: | Equipped | Control mount |
| Power supply： | Gasoline-powered direct-drive multi-rotor UAV | |
| Flight time： | 1-4 hours |
|

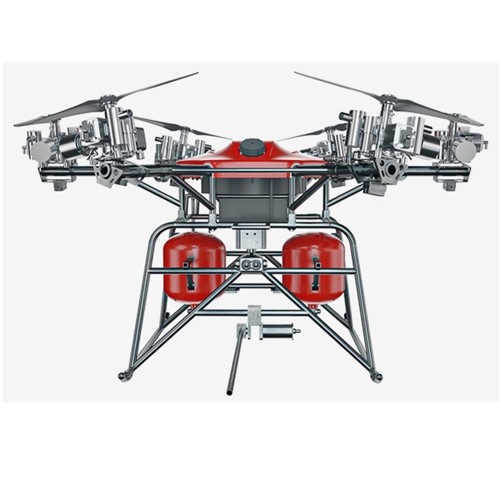

UAV flight platform
|
||
|
Wheelbase
|
1.9m
|
Distance between diagonal engine shafts
|
|
Size
|
2.3m*2.0m*1.2m
|
Outer Dimensions
|
|
Number of rotors
|
Six rotors
|
|
|
Maximum load (kg)
|
80
|
At 0m altitude, 15℃
|
|
Engine
|
17.5HP/7500rpm
|
|
|
Engine capacity
|
170cc
|
|
|
Engine idle speed
|
1100rmp/min
|
|
|
Engine pull
|
35kg/ 100 meters above sea level
|
|
|
Fuel
|
92#gasoline
|
Unleaded gasoline
|
|
Fuel ratio
|
30：1
|
Gasoline Volume: Lubricant Volume
|
|
Fuel tank volume (standard)
|
20L
|
|
|
Flight duration
|
60min
|
|
|
Rack Material
|
Aviation aluminum alloy
|
|
|
Start method
|
Electric start
|
|
|
Fuel consumption
|
3-4min/L
|
Related to drone payloads
|
|
Cruising speed
|
1-12m/s
|
|
|
Wind resistance rating
|
5 levels
8.0-10.7m/s
|
|
|
Flight continuity
|
25 hours
|
Flight time of one time
|
|
Rugged packing box
|
1.66*1.56*1.43m
|
|
|
Oil level monitoring
|
Support
|
|
|
Power monitoring
|
Support
|
|
|
Engine monitoring
|
Support
|
|
